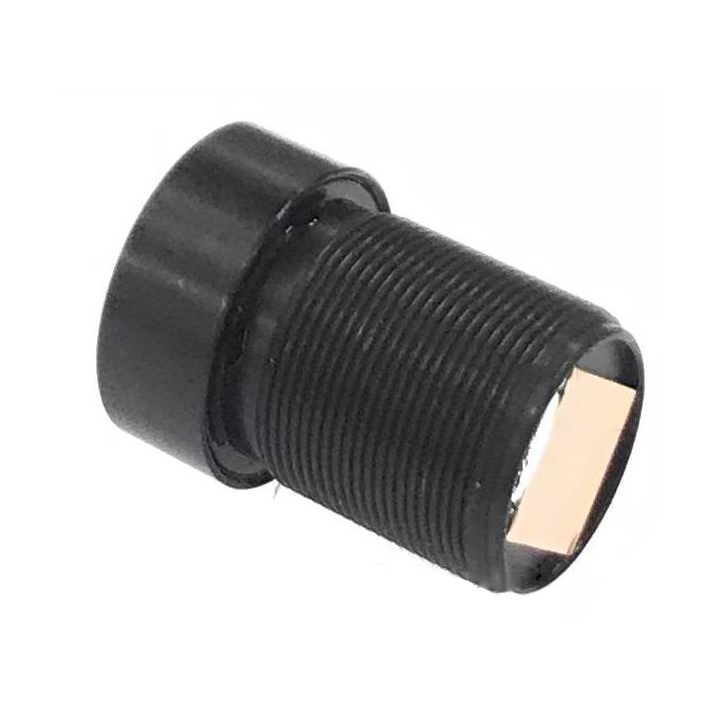

L3.5N-M12-5MP 3.5mm 1/2.5" 5MP F2.8 M12 None distortion Lens with IR-CUT filter
L3.5N-M12-5MP 3.5mm 1/2.5" 5MP F2.8 M12 None distortion Lens with IR-CUT filter
Catalog:
SKU: L3.5N-M12-5MP
Aperture:
Resolution:
$5.80
Weight: 0.02 kg

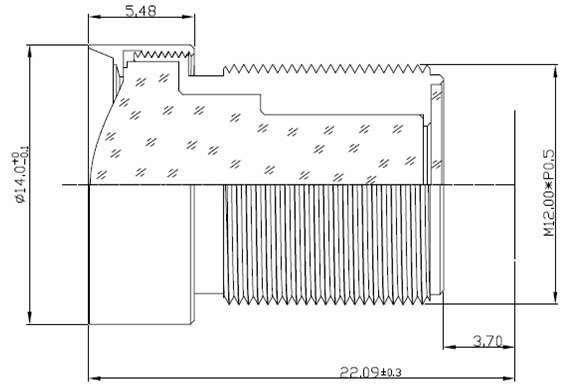

Optical Specifications
| Item | Specification | |||
| F No. | F2.8 | |||
| Focal Length | 3.5mm | |||
| Image circle | 1/2.5" | |||
| Resolution | 5MP | |||
| Mount | M12*P0.5 | |||
| TTL | 22.09 | |||
| Flange Back Length | 3.70mm | |||
| Distortion | <0.7% | |||
| FOV 4:3 | Image | H | V | D |
| 1/2.5" | 98° | 81.8° | 65.8° | |
| Operation | Focus | Manual | ||
| Iris | Fix | |||
| Structure | 2G2P + IRC650 | |||
| Operating temperature | -10°C ~ +60°C | |||
