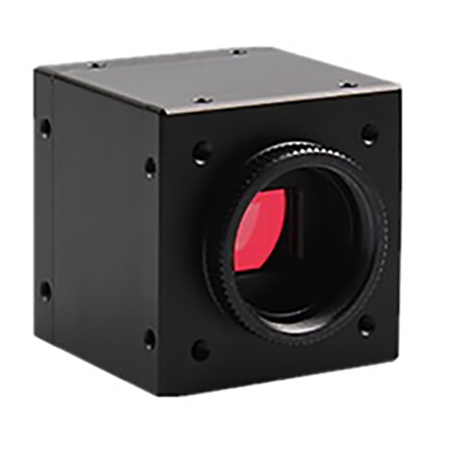

High quality 4K 22FPS@8.8MP 2/3" Mono USB3.0 industrial camera with software trigger
High quality 4K 22FPS@8.8MP 2/3" Mono USB3.0 industrial camera with software trigger
SKU: U3CH8M8-22FMT
Aperture:
Mount Type:
Resolution:
$1,127.00
Price: $980.00 - $1127.00
Weight: 0.2 kg
High quality 4K 22FPS@8.8MP 2/3" Mono USB3.0 industrial camera with software trigger
Parameter
| Model | U3CH8M8-22FMT | |
| SENSOR | 2/3 " CMOS (Mono) | |
| Resolution/Frame | Resolution | Frame |
| 3968 × 2232 | 22FPS | |
| 1980 × 1116(BIN2) | 22FPS | |
| Any ROI | ||
| Pixel Size | 2.5um | |
| Scanning type | Progressive scan/Continuous Output | |
| Shutter | Rolling Shutter | |
| Trigger | Software Trigger | |
| Exposure Time | 0.038ms ~ 1000ms | |
| Gain | Gain range | Length |
| 1x – 8x | 0.125 x | |
| Image Data Format | Mono8/Mono12 Optional | |

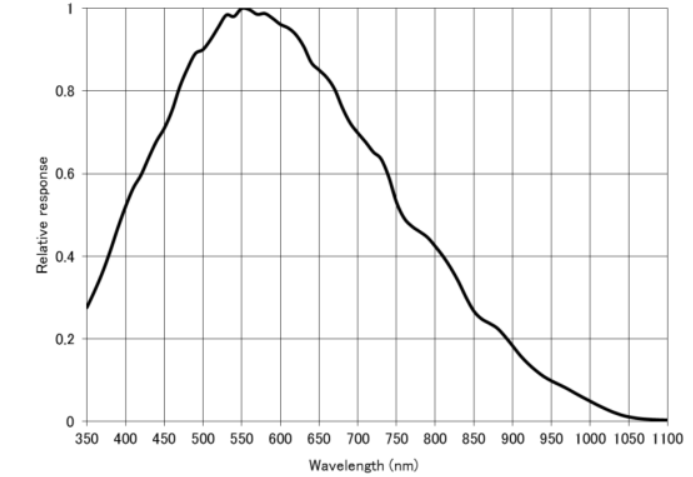

| Spectral Range | 380nm ~ 1100nm | |
| Image processing(ISP) | platform integrated | |
| Exposure | Manual/Auto/Area | |
| White Balance | Auto/One-time/Area | |
| Firmware Update | Support | |
| Product ID | User-defined | |
| Image format | RAW, BMP, JPG, PNG | |
| Programable control | Speed, Image Size, Gain, Anti-flick, Gama, Contrast, RGB Gain, Saturation, Black level, Sharpness,2D noise reduction,3D noise reduction | |
| Systems | Windows XP 32Bit; Windows 7/8/8.1/10 32/64Bit | |
| Software Interface | DirectShow / TWAIN | |
| Data Interface | USB3.0 5Gbps B type | |
| Rated Power (W) | <2.0W | |
| Power supply | USB 5V | |
| Working Environment | Temperature: 0°C ~ 50°C;Humidity: 10% - 90%RH(No condensation) | |
| Storage Environment | Temperature: -20°C ~ 60°C;Humidity: 10% - 60%RH | |
| Lens Mount | C Mount | |

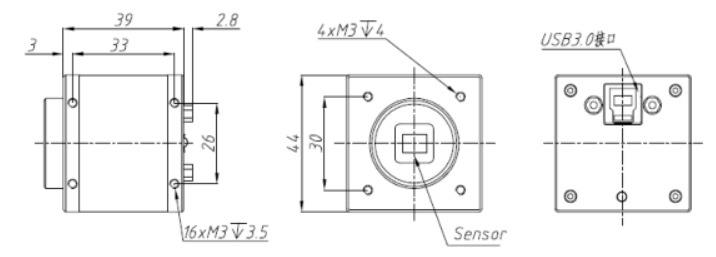

| Product Size | 44x 44x 39mm | |
| Weight | 150g | |
Built-in 32 MB buffer ensure image transmission more stable and faster
Plug and play interface
