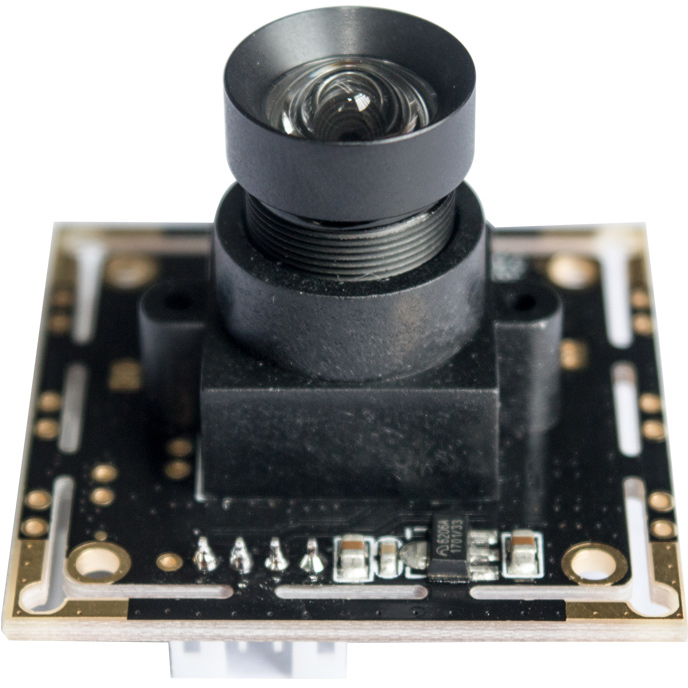

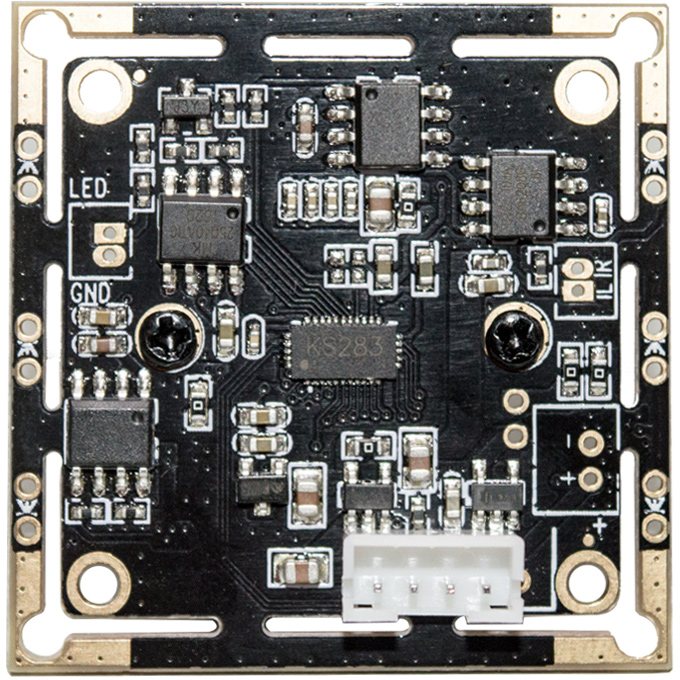

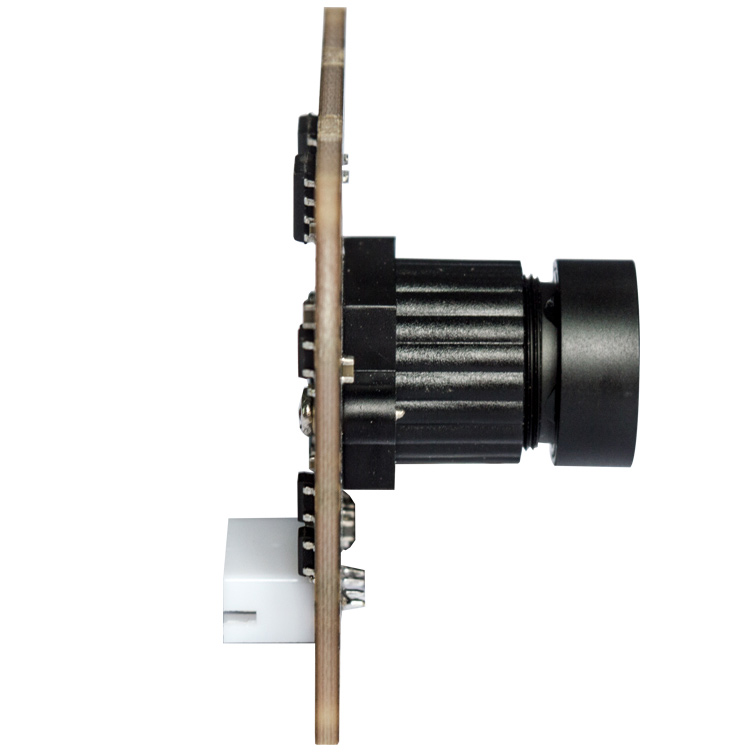

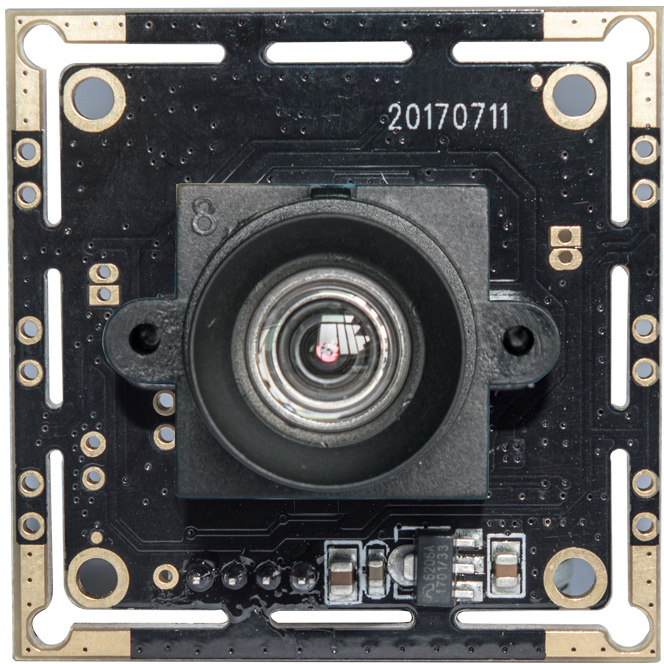

U1.3M142 1/3" 1.3MP AR0130 USB2.0 Camera board YUY2 MJPEG 30fps 38mm*38mm
U1.3M142 1/3" 1.3MP AR0130 USB2.0 Camera board YUY2 MJPEG 30fps 38mm*38mm
Catalog:
SKU: U1.3M130
Resolution:
$30.80
Price: $23.70 - $30.80
Weight: 0.015 kg
Dimensions: 3.8 cm × 3.8 cm × 0.9 cm
| Product number | |||
| MAX effective pixels | 1280 * 960 | ||
| Pixel Size | 3.75um x 3.75um | ||
| Sensor Size | 1/3" | ||
| Output parameters | Rosolution | MJPG | YUY2 |
| 160 * 120 | 30fps | 30fps | |
| 176 * 144 | 30fps | 30fps | |
| 320 * 240 | 30fps | 30fps | |
| 352 * 288 | 30fps | 30fps | |
| 640 * 480 | 30fps | 30fps | |
| 800 * 600 | 30fps | 20fps | |
| 1280 * 720 | 30fps | 9fps | |
| 1280 * 960 | 30fps | 9fps | |
| focusing | Fixed / Manual | ||
| Interface type | USB2.0 | ||
| Adjustable parameter | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Exposure | ||
| White Balance | Automatic / Manual | ||
| Exposure Control | Automatic / Manual | ||
| Voltage | DC 5V | ||
| Electric current | 70mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | Customized | ||
| Storage temperature | -20°C to 70°C | ||
| working temperature | -20°C to 70°C | ||
| USB Wire rod | Customized | ||
| System support | WinXP/Vista/Win7/Win8/Win10 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC | ||
